Introduction
- History Machine Adjustments are only available at the Machine level.
- GPS Offset Adjustments are available for all activity types.
- GPS Offset Adjustments carry forward to the end of the year or up to the next user-entered GPS Offset adjustment.
- Per 'Activity' type.
- Per Farmobile PUC™ device.
- To place your agronomic data at the right location, the following offsets are available:
- Antenna Centerline Offset: If the Farmobile PUC™ device antenna is not located directly in the center of the machine, provide the distance (ft.) and direction from the machine centerline.
- Implement Offset: Enter the distance and direction your agronomic activity (e.g., toolbar or spray boom, etc) is from the Farmobile PUC device antenna.
-
-
Select Machines tab from the Farmobile DataEngine platform menu will open the Machines page with all of your Farmobile PUC device listed and displayed on the map.
-
-
-
Select a machine to open the machine details page.
-
-
-

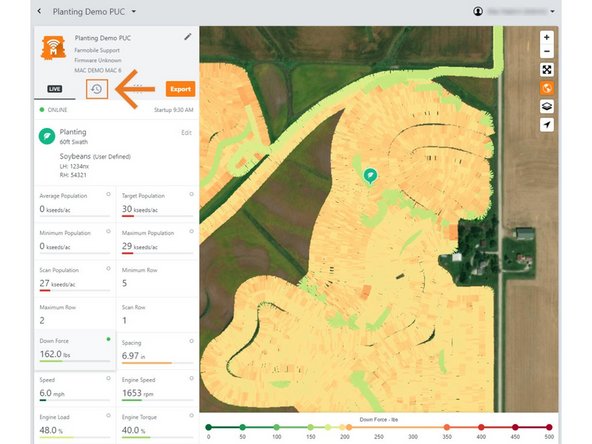

Select the History tab to open the history page for the selected machine.
-

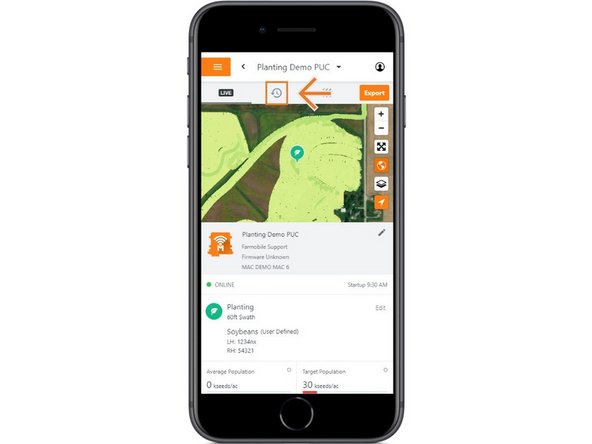

The History page will open with the last active day selected.
-
-
-

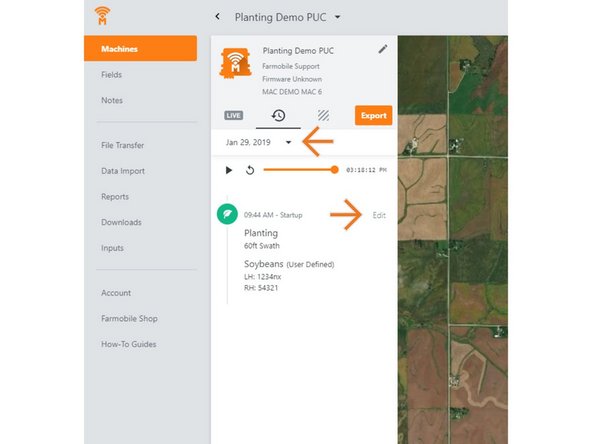

Select the calendar picker to view a different day. Days containing Machine History are highlighted black.
-

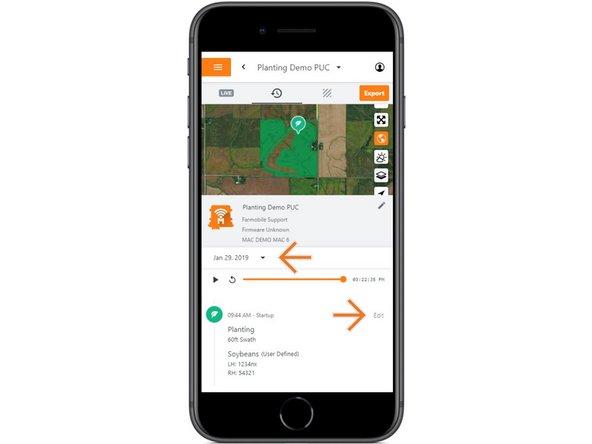

Select edit to expand the adjustment options within the required session.
-
The available options to adjust vary based on the current activity type.
-
-
-

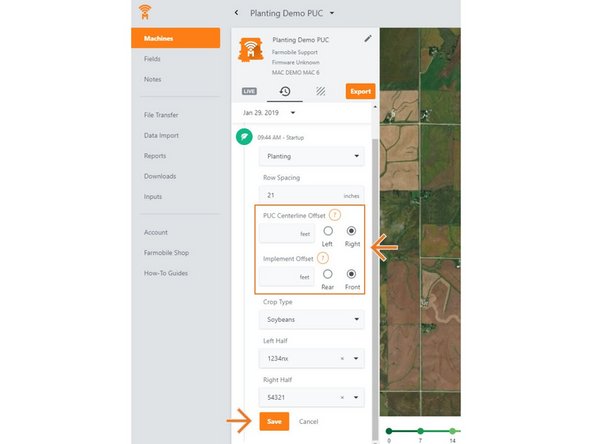

Provide your offset values so we can place your agronomic data in the correct location.
-

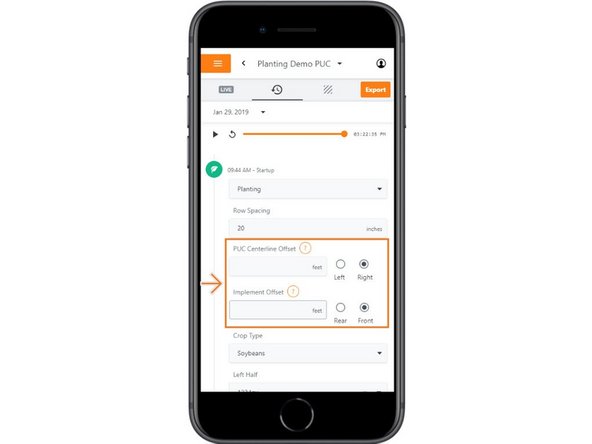

Centerline Offset: Provide the distance (ft.) and direction from the center of the machine the antenna is located.
-

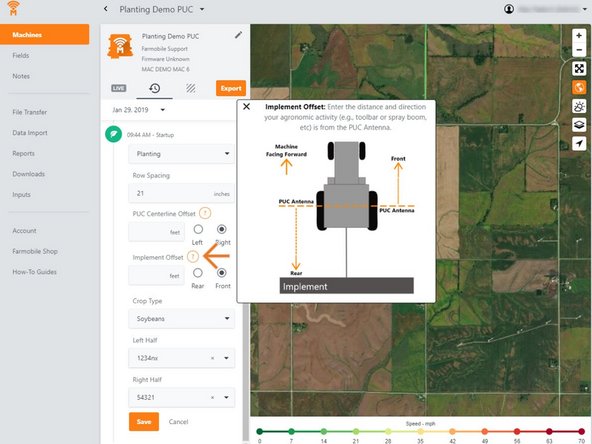

Implement Offset: Provide the distance and direction your agronomic activity (e.g., toolbar or spray boom, etc) is from the antenna.
-
TIP: To correctly offset your antenna, select the orange question mark to view a diagram.
-
Select 'Save' to make the adjustment.
-
